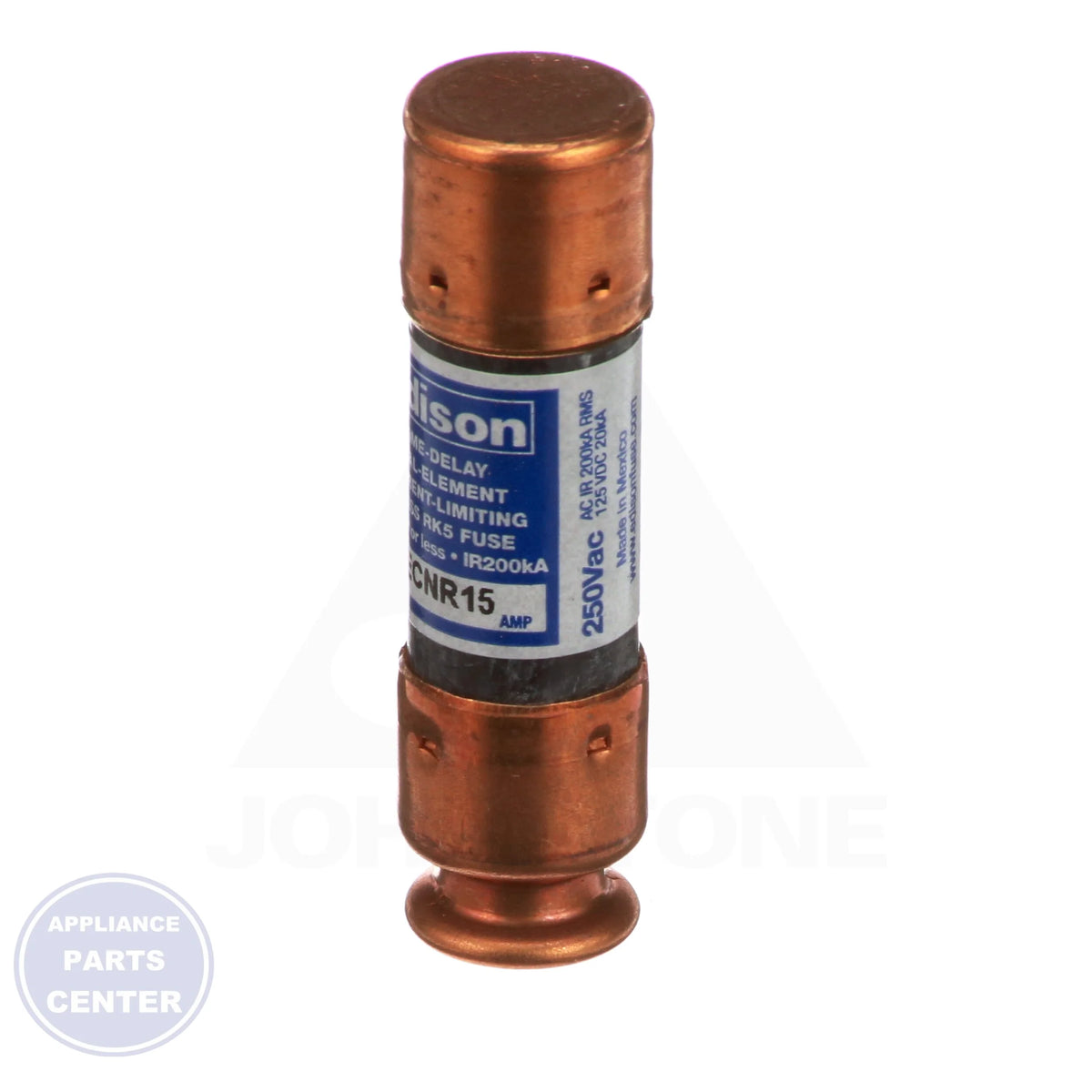

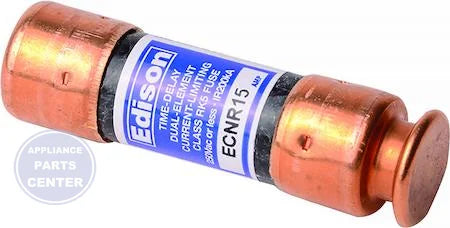

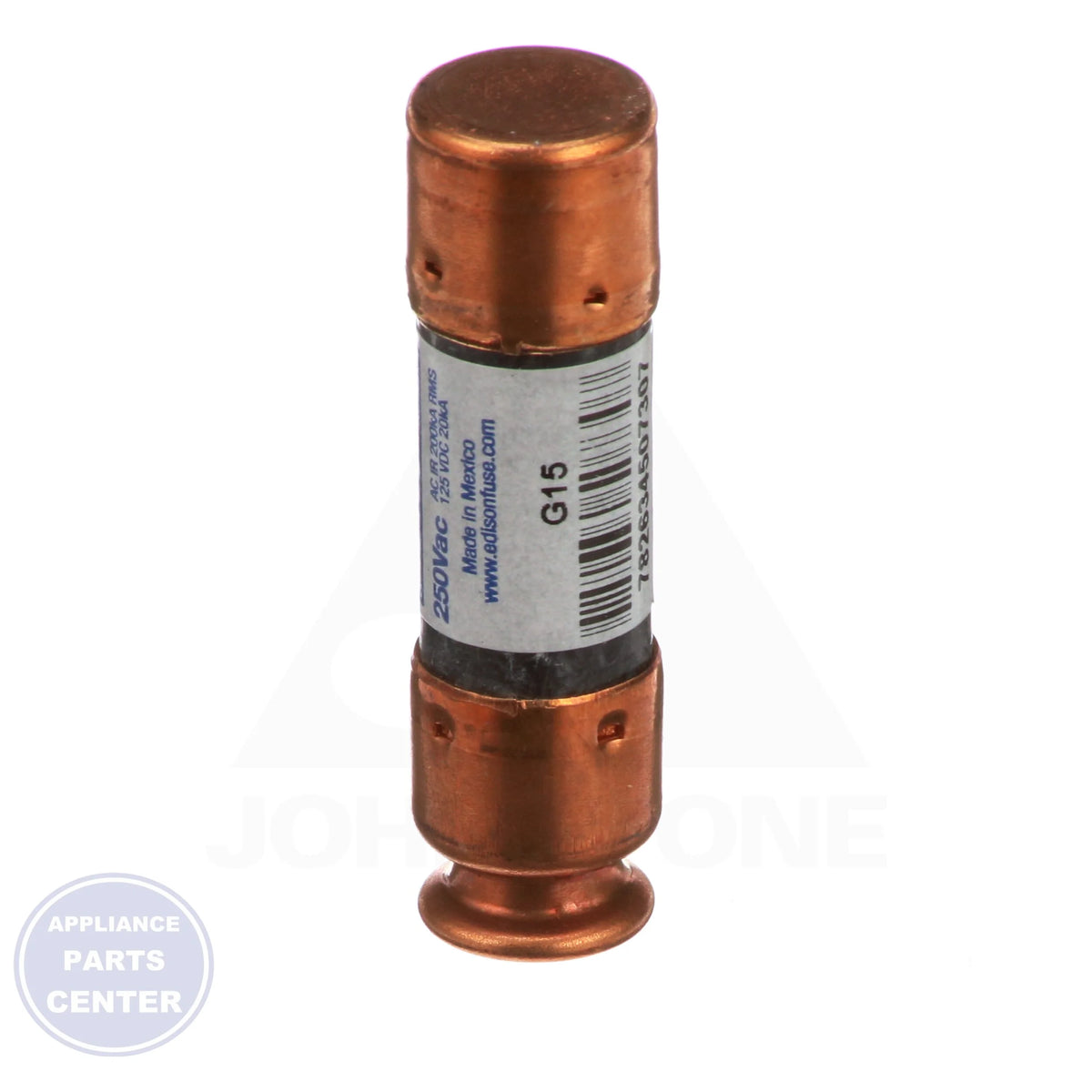

Dual Element Fuse 15 AMP | 7-CRNR15

Part Number

ER7-CRNR15

Manufacturer Part Number

7-CRNR15

Part Type

Thermal fuses

Compatible Brands

Diversitech

Replaces Part Numbers

G31-522

The Dual Element Fuse 15 AMP (Part Number: 7-CRNR15) is a vital component designed to provide time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment. With a length of 2" and diameter of 1/2", this Class RK5 fuse offers 15 Amps and 250V, packaged in quantities of 10. Certified to U.L. Class RK-5 standards, this fuse has an interrupting rating of 200,000 Amps, ensuring safety and performance. Compatible with G31-522 models, this fuse eliminates unnecessary maintenance from harmless overloads. Installation can be done with common tools and takes only minutes.

Appliance Parts Center – a family-owned store in Sacramento with 25+ years of experience and a huge in-stock inventory.

We know appliances inside and out and will help you find the right part with expert, honest advice.

Part Number 7-CRNR15 replaces:

• G31-522

Genuine Diversitech part. Fits Diversitech and other models using this part number.
