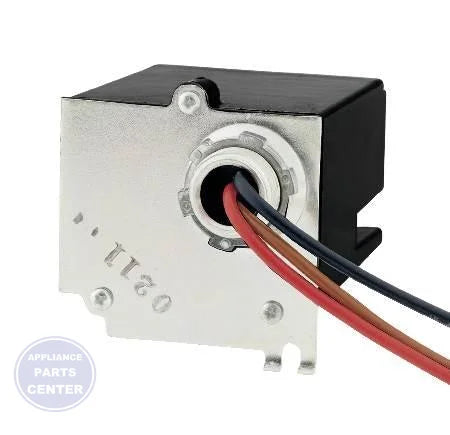

Fan Relay | R8225A1017
All sales are final
No returns or exchanges. Read our policy
Not sure it fits? Call (916) 729-3117 and we'll confirm at no charge.
Fast Shipping:Ships within 1 business day
Specifications
Specifications
- Part Number
- ERR8225A1017
- Manufacturer Part Number
- R8225A1017
- Compatible Brands
- Resideo
- Replaces Part Numbers
- L39-103
Product Details
Product Details

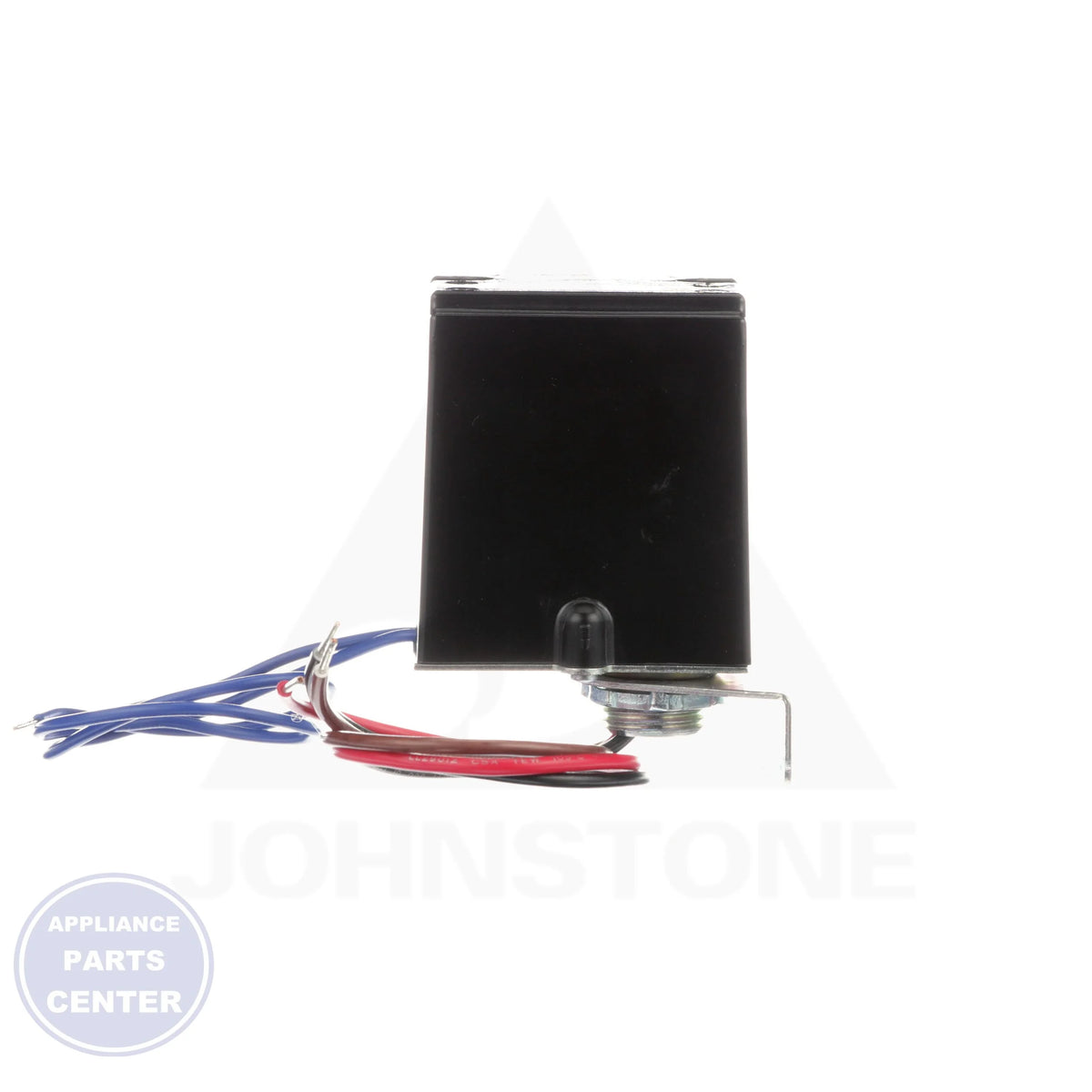

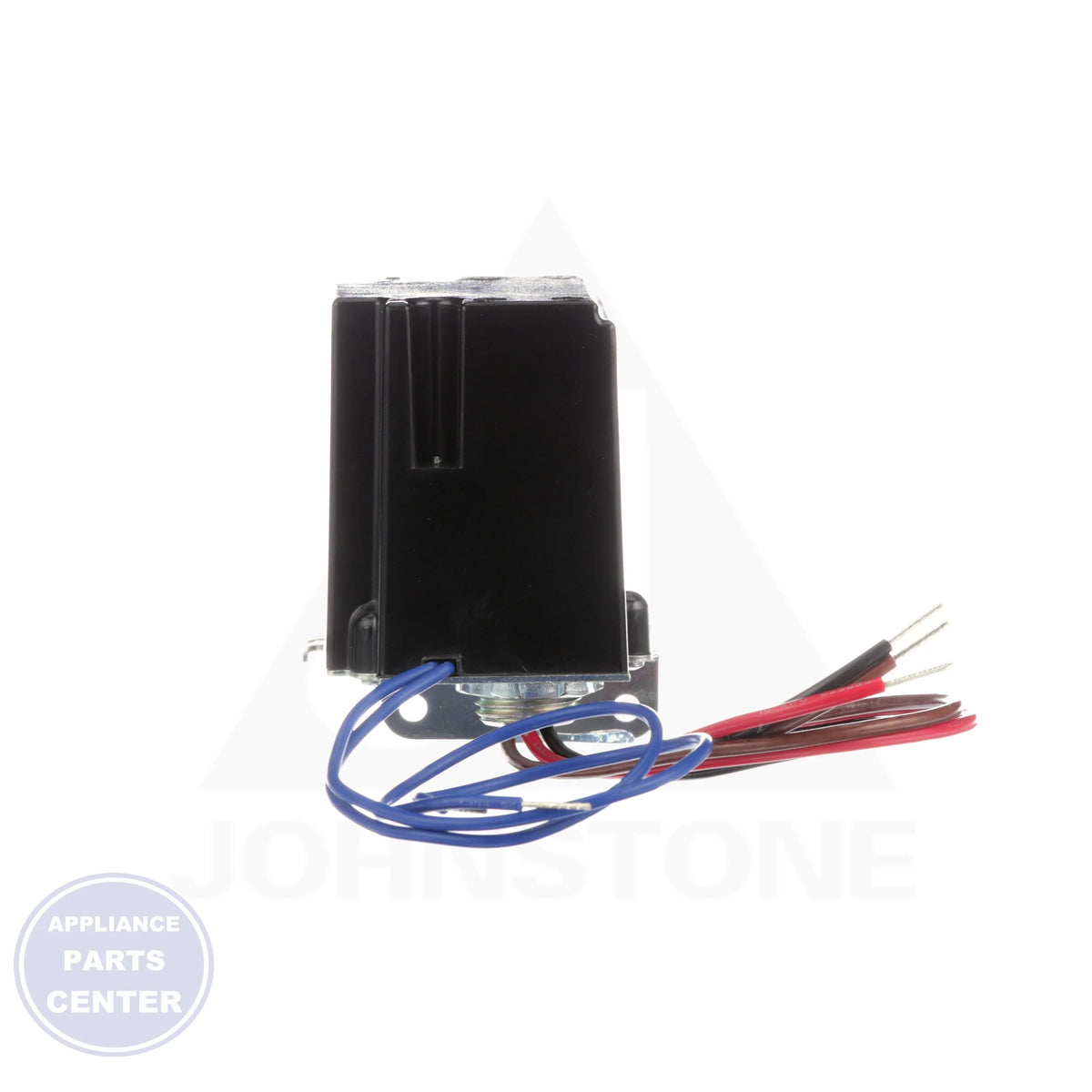

The Fan Relay R8225A1017 is a crucial component that ensures efficient cooling system operation, with a SPDT switch action and 24 coil voltage. This relay is meticulously designed for ease of identification and installation, featuring molded terminal numbers and a circuit diagram for straightforward wiring. Compatible with L39-103 and various models from leading brands like [Brand], this relay is a reliable solution for maintaining optimal appliance performance. Installation can be done in under [number] minutes with common tools.
Appliance Parts Center – a family-owned store in Sacramento with 25+ years of experience and a huge in-stock inventory.
We know appliances inside and out and will help you find the right part with expert, honest advice.
Cross Reference Information
Cross Reference Information
Part Number R8225A1017 replaces:
- L39-103
Genuine Resideo part. Fits Resideo and other models using this part number.
