General Purpose Switching Relay | R8222D1014
All sales are final
No returns or exchanges. Read our policy
Not sure it fits? Call (916) 729-3117 and we'll confirm at no charge.
Fast Shipping:Ships within 1 business day
Specifications
Specifications
- Part Number
- ERR8222D1014
- Manufacturer Part Number
- R8222D1014
- Compatible Brands
- Resideo
- Replaces Part Numbers
- L36-901
Product Details
Product Details

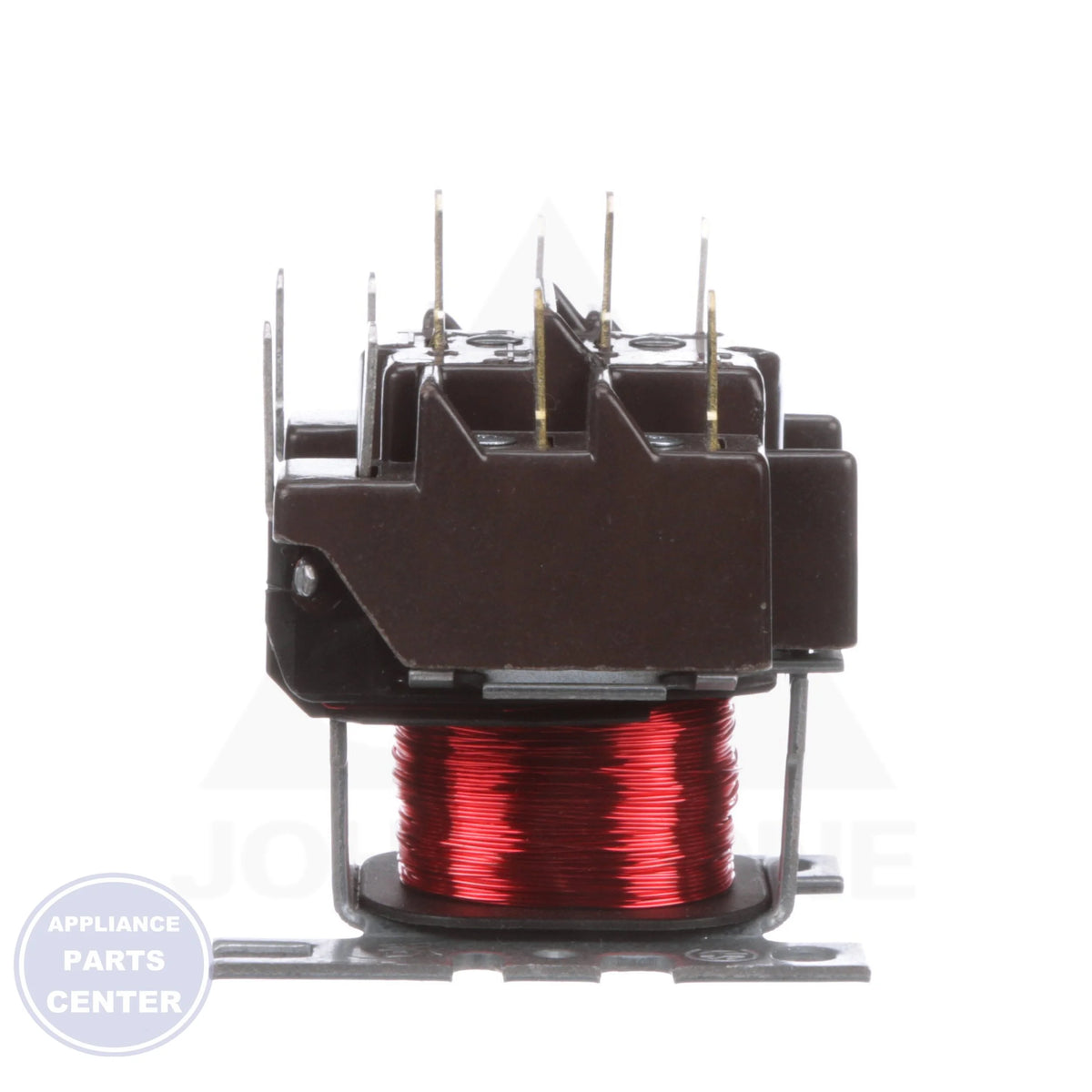

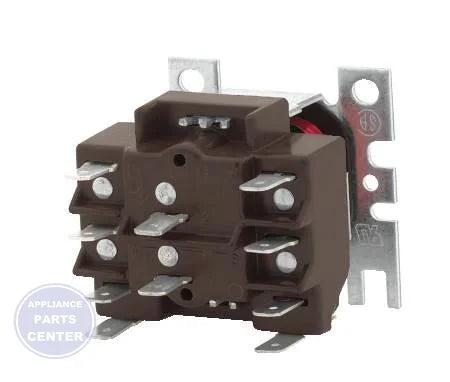

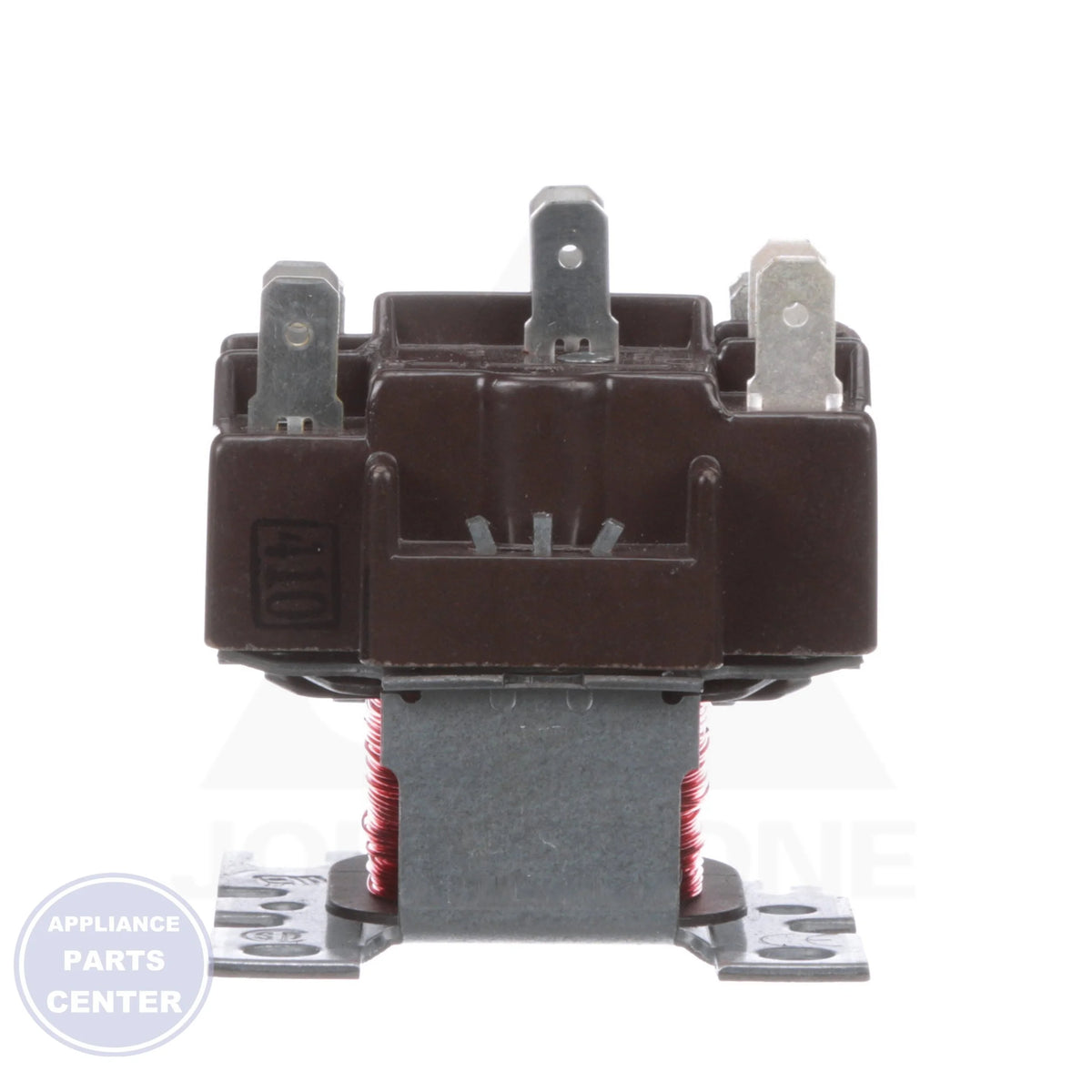

The General Purpose Switching Relay (Part Number: R8222D1014) is a versatile component designed for efficient power control. With a coil voltage of 24V, this DPDT switching relay features power-rated terminals 1-2-3 and 4-5-6 for reliable performance. Operating at a maximum ambient temperature of 155°F, it offers contact ratings of 15A resistive @ 120VAC and 208/240/277VAC, making it suitable for various appliances such as L36-901. Dimensions of 2-5/32" W x 1-7/8" H x 2-3/8" D ensure easy integration. Installation can be done swiftly with common tools.
Appliance Parts Center – a family-owned store in Sacramento with 25+ years of experience and a huge in-stock inventory.
We know appliances inside and out and will help you find the right part with expert, honest advice.
Cross Reference Information
Cross Reference Information
Part Number R8222D1014 replaces:
- L36-901
Genuine Resideo part. Fits Resideo and other models using this part number.
