RESCUE® Series Condenser Fan Motor | 5462H
All sales are final
No returns or exchanges. Read our policy
Not sure it fits? Call (916) 729-3117 and we'll confirm at no charge.
Fast Shipping:Ships within 1 business day
Specifications
Specifications
- Part Number
- ER5462H
- Manufacturer Part Number
- 5462H
- Part Type
- Motors
- Fits Appliance
- Air Conditioner Parts
- Compatible Brands
- US Motors
- Replaces Part Numbers
- S89-095
Product Details
Product Details

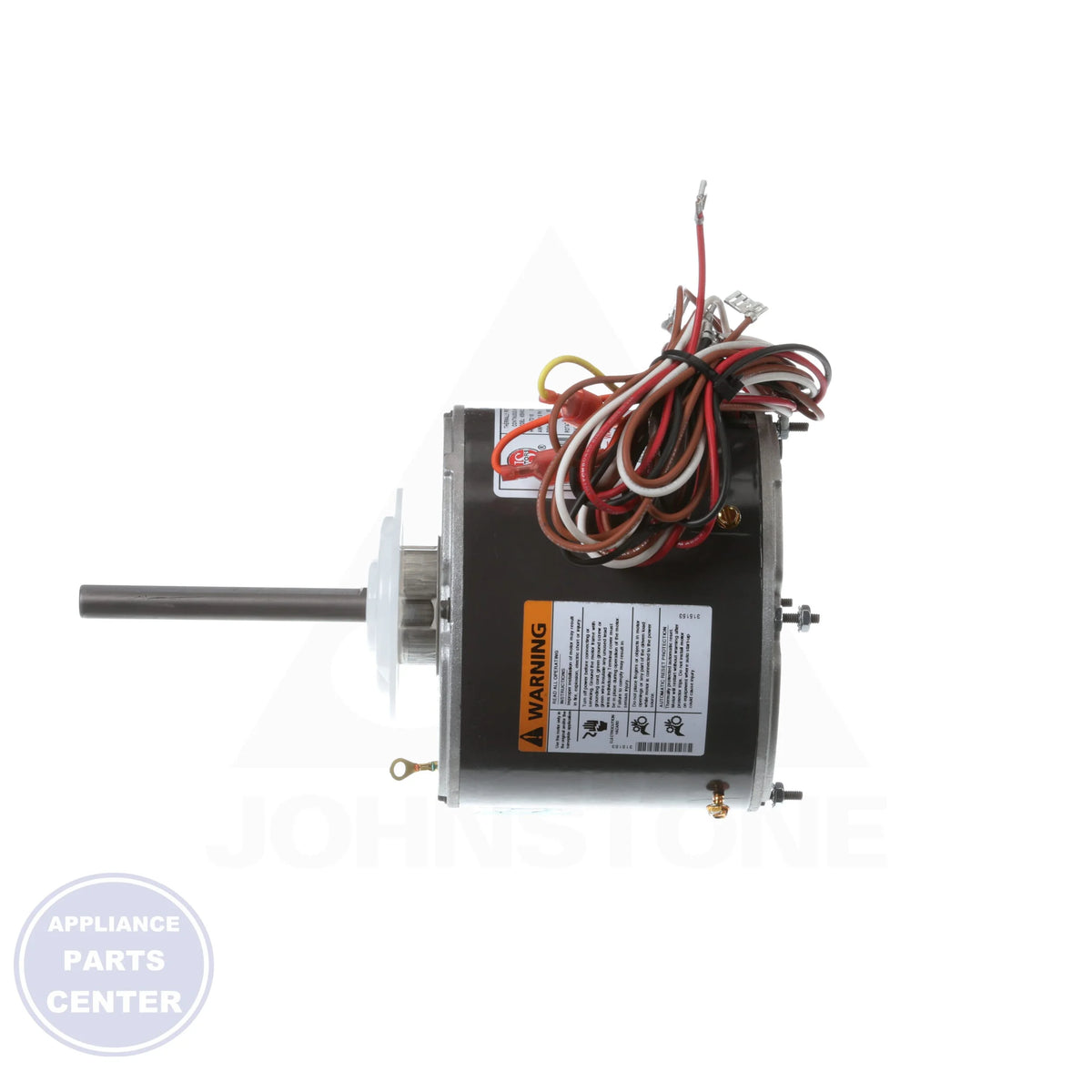

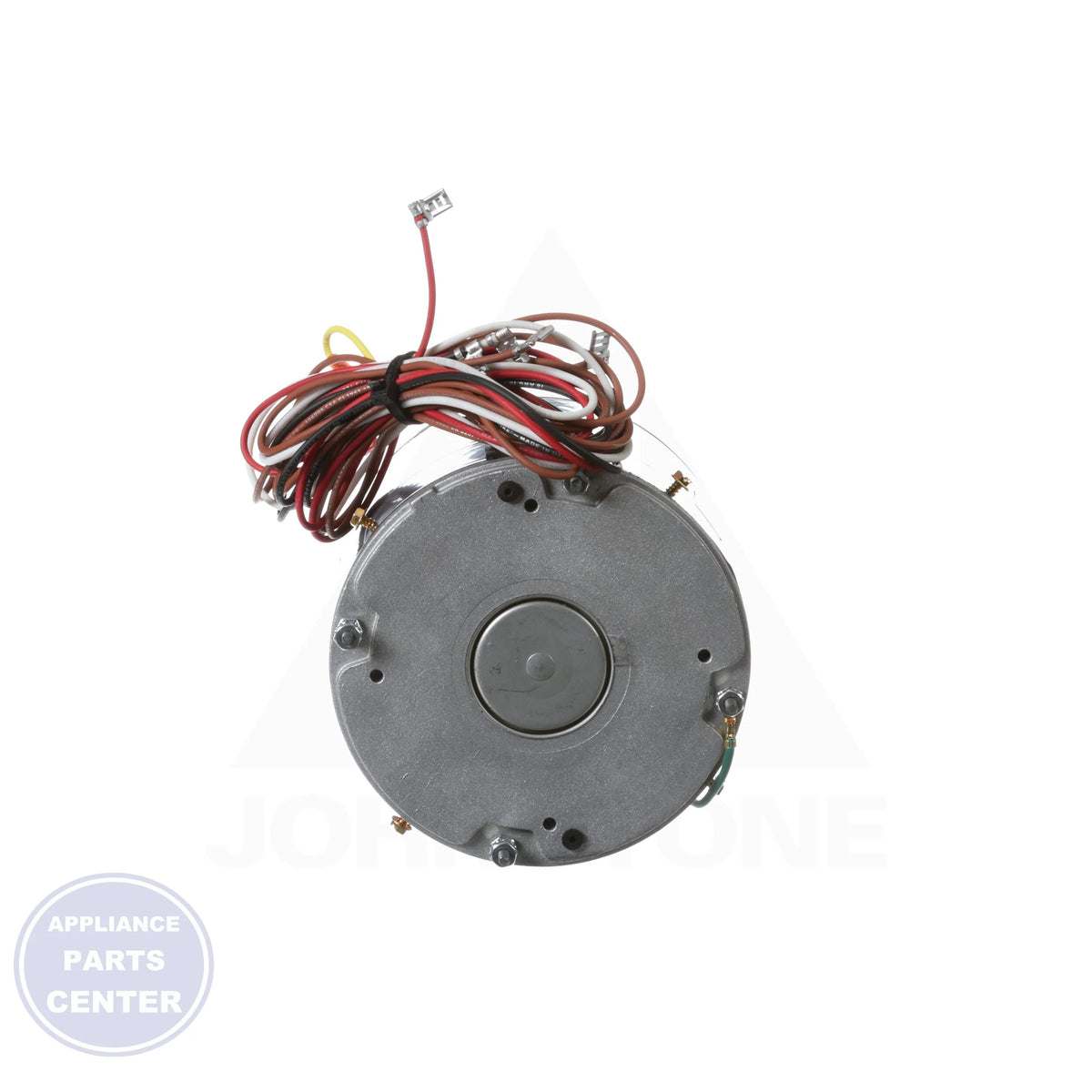

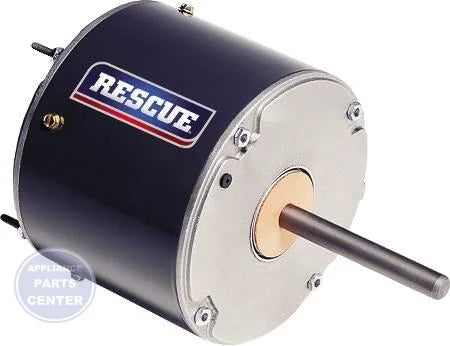

The RESCUE® Series Condenser Fan Motor (Part Number: 5462H) is a high-quality motor designed to deliver exceptional performance for your HVAC system. This motor features a Diameter of 5-5/8" and a HP range of 1/3-1/6, supporting various residential and commercial condensing units. It operates at 208-230 Volts, 60 Hz with a service factor of 1.00, ensuring efficiency at 1075 RPM. Compatible with S89-095, it boasts a sturdy Ball bearing type, TEAO Enclosure, and automatic thermal protection. With a NEMA Frame of 48 and reversible rotation, this motor guarantees reliable operation in extreme temperature locations. Installation is a breeze with the stud mounting system, suitable for all angles.
Experience the difference with the RESCUE® Series Condenser Fan Motor - order yours now from Appliance Parts Center – a family-owned store in Sacramento with 25+ years of experience and a huge in-stock inventory.
We know appliances inside and out and will help you find the right part with expert, honest advice.
Cross Reference Information
Cross Reference Information
Part Number 5462H replaces:
- S89-095
Genuine Us motors part. Fits US Motors and other models using this part number.
