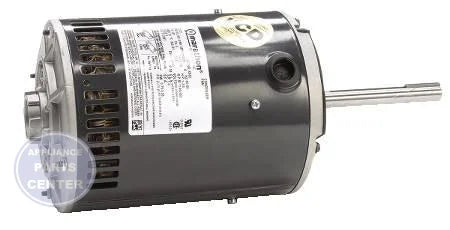

![[Brand] Three-Phase Condenser Fan Motor 056T11O5301 - Main view showing efficient cooling for commercial units](http://apcpart.com/cdn/shop/files/056T11O5301-three-phase-condenser-fan-motor-direct-drive-56-frame-1-0-service-factor-ball-bearing-continuous-duty-056t11o5301-main.webp?v=1777194846&width=1946)
Three-Phase Condenser Fan Motor Direct Drive, 56 Frame, 1.0 Service Factor, Ball Bearing, Continuous Duty | 056T11O5301
All sales are final
No returns or exchanges. Read our policy
Not sure it fits? Call (916) 729-3117 and we'll confirm at no charge.
Fast Shipping:Ships within 1 business day
Specifications
Specifications
- Part Number
- ER056T11O5301
- Manufacturer Part Number
- 056T11O5301
- Part Type
- Motors
- Fits Appliance
- Air Conditioner Parts
- Compatible Brands
- Leeson
Product Details
Product Details
The Three-Phase Condenser Fan Motor Direct Drive 056T11O5301 is designed with a NEMA Frame 56Y, 3/4 HP, and a 1.0 Service Factor for efficient performance. Compatible with various Trane, Carrier, Climatrol, and York units 5 tons and larger, this motor features a Ball Bearing and Continuous Duty operation. With specifications like 200-230/460 Volts, 1140 RPM, and a 5/8'' x 6'' Shaft, installation is made easy with its Belly band/Hub mounting. This motor ensures reliable cooling with automatic reset thermal protection and is certified by UR/CSA. Install it with ease and experience high-quality performance.
Appliance Parts Center – a family-owned store in Sacramento with 25+ years of experience and a huge in-stock inventory.
We know appliances inside and out and will help you find the right part with expert, honest advice.
Cross Reference Information
Cross Reference Information
Genuine Leeson part. Fits Leeson and other models using this part number.
